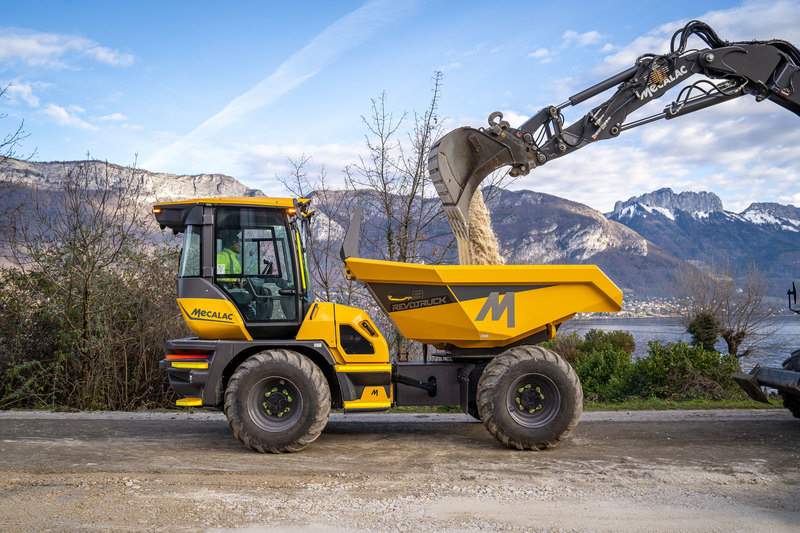

Mecalac, with many years of experience in innovation and manufacturing efficient earthmoving machinery, presents the Revotruck, a professional dumper that revolutionizes material transport. With a 360° rotating cab that allows the operator to have complete control of the working environment without the need for additional movement, visibility in all directions is possible, reducing the risk of accidents and increasing productivity. The Revotruck’s frame is designed with a central oscillation chassis, ensuring maximum flexibility and optimal load distribution, enhancing stability and traction in all job site conditions.
REVOTRUCK SERIES
Revolutionary site dumpers
INQUIRY FORM
SPECIFICATIONS
MODEL
Payload [kg]
Skip Type
Total Operating Weight [kg]
Engine
Model
Emission
Engine [cm³]
Power [kW]
Vehicle dimensions
Length [mm]
Width [mm]
Height [mm]
REVOTRUCK 6
6.000
Swivel
5.915
Perkins - 904J-E28TA
EU Stage V / US EPA Tier 4 Final
2.800
55
4.895
2.285
2.805
REVOTRUCK 9
9.000
Swivel
6.585
Perkins - 904J-E28TA
EU Stage V / US EPA Tier 4 Final
2.800
55
5.270
2.410
2.855
Movement in confined spaces
The advanced steering system with switchable modes – front steering, all-wheel steering, and crab steering – offers exceptional flexibility, allowing for a turning radius of less than 4 meters. This translates into class-leading maneuverability, even in the most confined spaces.
